Space Door Latch (ADA)

Space Door Latch (ADA)

Pair of dimensioned illustrations of the Space Door Latch (ADA) seen from the side and elevation views
Description
Description

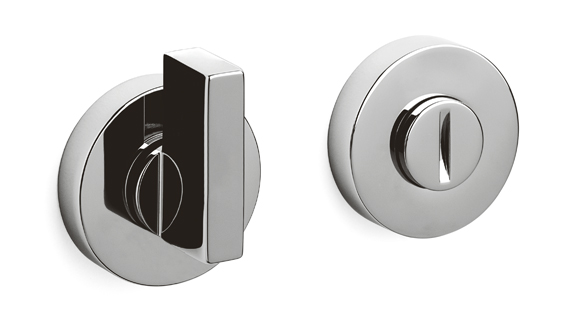

The Space Door Latch (ADA) shares a lot of similarities with the Space Door Latch, like round parts and sharp clean lines. However, the rectangular lever is a little larger, ensuring it gives off a firm grip during use. It is made of brass.

Dimensions & Sizes
Dimensions & Sizes

The Space Door Latch (ADA) has an overall height of 2.36” (60 mm), diameter of 1.85” (47 mm), and depth of 1.22” (31 mm). It is available with an optional lock indicator.

Elevation and top view drawings of the Space Door Latch (ADA) with doors
Elevation and top view drawings of the Space Door Latch (ADA) with doors
3D Model
3D Model
Common Questions
Common Questions
View of a Space Door Latch (ADA) in 3D available for downloadSpace Door Latch (ADA)
Details
Details

*Under Development*

Height:
2.36” | 60 mm (Overall)
Width:
1.85” | 47 mm (Diameter)
Depth:
1.22” | 31 mm
Length:
:
:
Weight:
Area:
:

Options: Lock indicator

Materials:
Brass
Designer:
Studio Olivari
Year:

Drawings include:

Space Door Latch (ADA) front elevation, side, doors (front)

Door Latches, also known as Door Catches, are the mechanical fasteners that join doors to another object or surface, to be closed while also allowing them to be opened when necessary. Door Latches usually engage with other hardware pieces on the matching mounting surface.

2.36” | 60 mm (Overall)
1.85” | 47 mm (Diameter)
1.22” | 31 mm
