Type D Plug & Socket Dimensions & Drawings

Comparison drawing of the Type D Plug & Socket compared to other sockets

Description

The Type D Plug & Socket is a 3 plug socket primarily used in India. The Type D Plug & Socket is grounded, has an amp rating of 5 A, voltage range of 220-240 V, and is compatible with plug type D. This plug is unsafely partially compatibility with types C, E, and F

Dimensions & Sizes

The outer pins of the Type D Plug & Socket have a width of .2” (5.08 mm) and length of .59” (14.9 mm). The two pins are set .75” (19 mm) apart, while the earth pin is centered and spaced .87” (22.2 mm) vertically from the others. The earth pin has a diameter of .28” (7.06 mm) and length of .81” (20.6 mm).

Dimensioned elevation and plan drawings of the Type D Plug & Socket with spacing measurements

Description

Dimensions & Sizes

3D Model

Common Questions

How do you install an electrical socket?

Installing a replacement electrical socket is simple. Install a replacement electrical socket by turning off the main power. Prepare the cables, strip the wires, and attach the Pigtail wires. Then connect the ground wire, and attach the neutral and hot wires to the receptacle. After attach the receptacle to the box and add cover plate over the electrical socket.

What is the line and the load in an outlet?

The line of an outlet is for the incoming power supply. The wires coming from an electrical panel should be connected to the line of the outlet. The load of an outlet is for power that is going out of the outlet. If you are installing other outlets, the other electrical wires should be connected to the load side of the outlet.

How do you tell if an electrical socket has power?

When you can’t tell if an electrical socket has power first try to plug in something else to see if the outlet works. If the electrical socket does not power anything it most likely has no power and its voltage should be tested with a multimeter. If no other electrical sockets are working it is most likely a problem with the circuit.

How do you install an electrical socket?

What is the line and the load in an outlet?

How do you tell if an electrical socket has power?

What items are considered fixtures in residential property?

Items considered fixtures in a residential property are items that are part of the house or apartment which are permanent and service the people living within the residence. An item is considered a fixture if it is affixed to the ceiling, floor, or wall through screws, cements, pipes, nails or glue. Examples of fixtures are built-in bookcases, plumbing, ceiling lights, wall mounted shelving, washers, dryers and awnings.

What are the required fixtures in a residential building?

Generally, the required fixtures in a residential building are fitted kitchen units, cupboards, ovens and sinks. Other required fixtures are bathroom sinks, faucets, tubs, central heating systems, and dishwashers. Typically the fixtures are either defined on the deed of the property, or apartment lease.

How often should household fixtures be replaced or upgraded?

How often a household fixture should be replaced depends on the type of fixture. Washing machines should be replaced every 8 to 12 years. The HVAC system typically lasts 15 to 20 years. Water heaters older than 10 years should be replaced. Generally, faucets will need to be replaced every 15 years, and most sinks will stay in working condition for 50 years.

What items are considered fixtures in residential property?

What are the required fixtures in a residential building?

How often should household fixtures be replaced or upgraded?

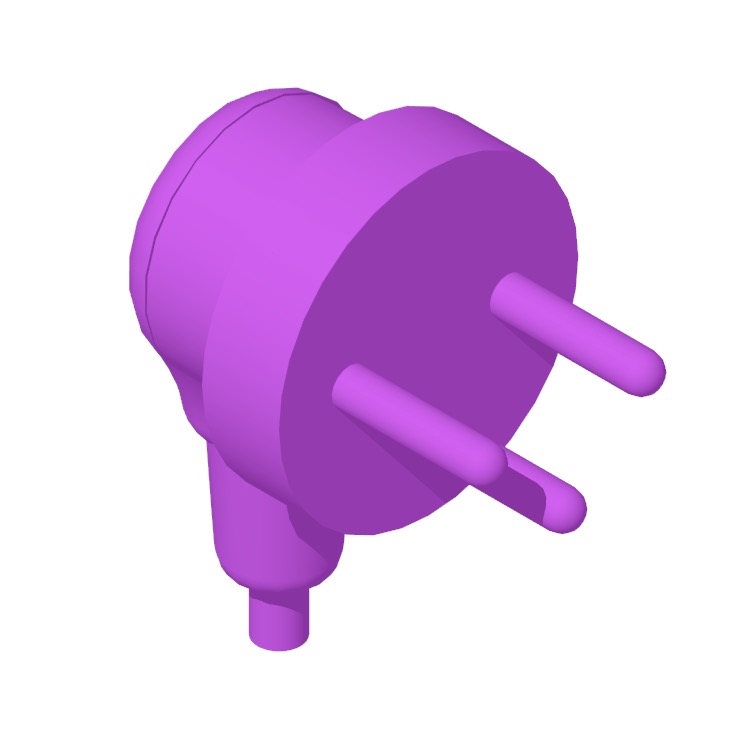

3D model of the Type D Plug & Socket viewed in perspective

Under Development

Height:

Width:

Depth:

Length:

Weight:

Area:

Pins: 3 
Used in: India 
Compatibility: Type D; unsafe partial compatibility with types C, E, and F 
Amp Rating: 5 A 
Circuit: Grounded 
Voltage: 220-240 V 

Pin Width: .2” | 5.08 mm 
Pin Length: .59” | 14.9 mm
Earth Pin Width: .28” | 7.06 mm 
Earth Pin Length: .81” | 20.6 mm 
Pin Centers: .75” | 19 mm 
Earth Pin Vertical Center: .87” | 22.2 mm

Drawings include:
Type D Plug & Socket socket elevation, plug plan, plug elevation

IEC - Type D Plug & Socket

Wikipedia - AC Power Plugs & Sockets
International Electrotechnical Commission (IEC)
